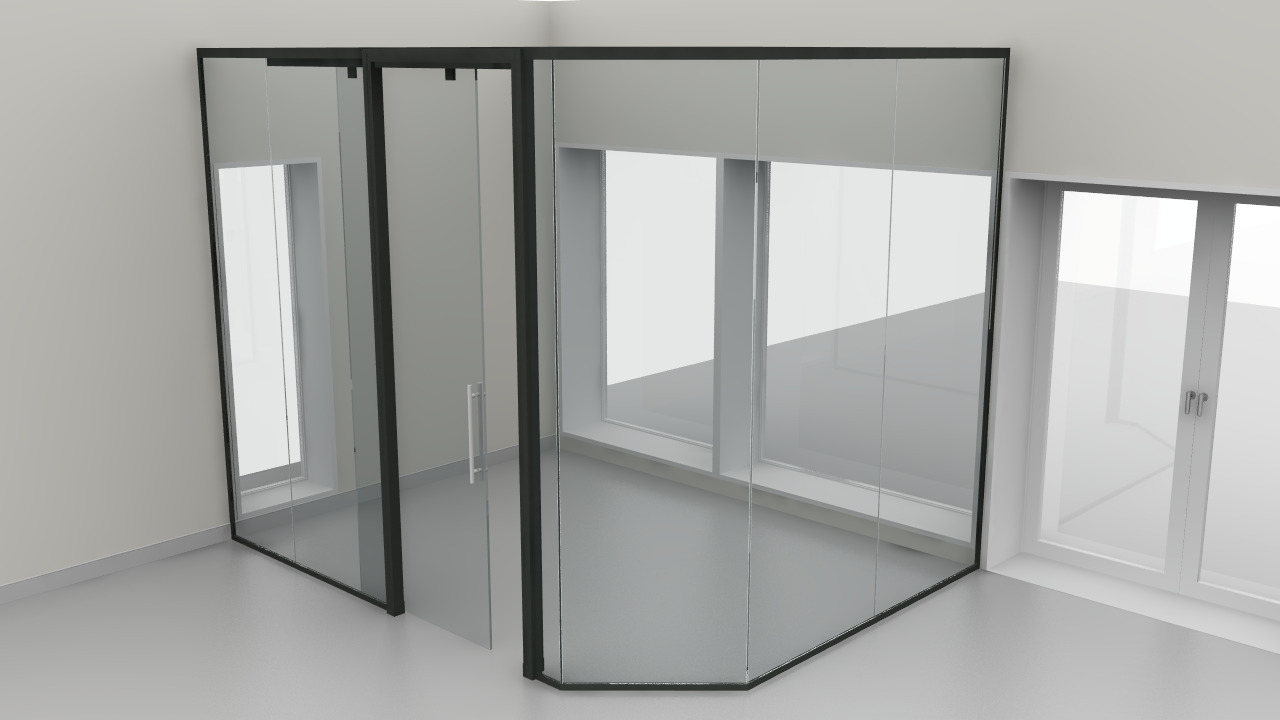

Rendering of Lite Scale Wall application in Heritage Office Vancouver Showroom

DETAILED OVERVIEW

H312587

ABOUT THIS INSTALLATION:

CEILING HEIGHT

  • RANGE FROM 108” – 108 ½”

CHANNEL SIZE-BASE

  • SMALL

CHANNEL SIZE-VERTICAL

  • SMALL

GLAZING

  • 6500 – CLEAR GLASS
  • ½” THICK GLASS

PAINT

  • 7360 – MERLE

DOOR TYPE: GLASS SELECTIONS POLISHED SLIDER DOOR

  • ½” DOOR THICKNESS
  • SOFT CLOSE ON THE LEADING AND TRAILING EDGE
  • VERTICAL SEAL
  • NON-LOCKING

GENERAL NOTES:

  • BLOCKING: WHEN INSTALLED UNDER A SUSPENDED CEILING GRID, BLOCKING IS REQUIRED ABOVE CEILING TILES FOR STRUCTURAL SUPPORT
  • MAX CEILING HEIGHT IS 10’0”
  • MAX GLASS RUN IS 30’0” BEFORE A VERTICAL TRANSITION IS REQUIRED
  • NO POWER IN BASE, USE IN CONJUNCTION WITH PRIVACY WALL IF NEEDED
  • DRY GLAZE WITH 3M VHB TAPE
  • SOFFIT CAPABLE OF SUPPORTING 150 LBS FOR SLIDER DOORS
