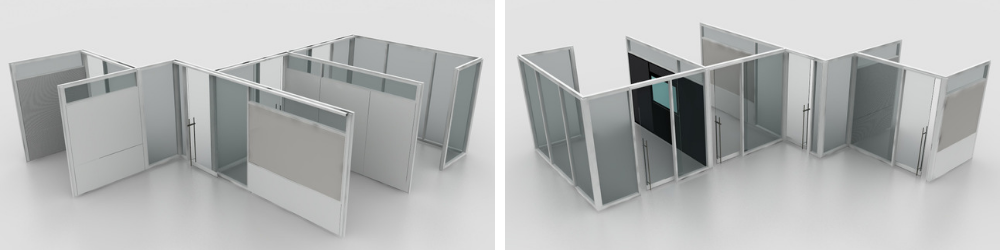

V.I.A. Wall – Executive Area

DETAILED OVERVIEW

H309596 (LINES 320 – 418 & 472)

ABOUT THIS INSTALLATION:

CEILING HEIGHT: 110”

FLOOR GUIDE: SEISMIC

CEILING FASTENER: 1/8” DONN FINELINE

SEALS & INSULATION + ACOUSTIC SEALS + DROP SEALS

PAINT

• 7241 – ARCTIC WHITE

FABRIC

• P520 – TINSEL DEPTH

GLASS

• 6500 – CLEAR GLASS
• DOUBLE GLAZED (¼” + ¼”) OR (6MM + 6MM)

BACK PAINTED GLASS

• 6590 – BLACK (THIS IS THE ONLY COLOUR OF BACK PAINTED GLASS THAT YOU CAN HAVE BENEATH A MONITOR SHROUD, LIGHTER COLOURS ALLOW YOU TO SEE THE ELECTRICAL)
• 6589 – MERCURY

MONITOR SHROUD

• 7207 – BLACK
• 60” x 37” = SUPPORTS A SINGLE 55-60” TV

DOOR TYPE: POLISHED EDGE

• SATIN CHROME
• LADDER PULL (ALIGNED)
• (2) LOCKING, (2) NON-LOCKING
• SLIDER DOOR TRACK EXTENSION ON ALL DOORS

POWER

• WIRING SCHEMATIC: 3+1
• BUILDING CONNECTION: HARDWIRE
