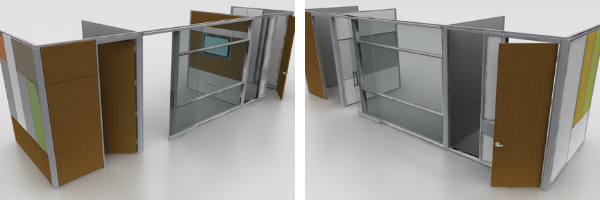

V.I.A. Wall – Port Moody Area

DETAILED OVERVIEW

H278638

ABOUT THIS INSTALLATION:

CEILING HEIGHT: 114”

FLOOR GUIDE: SEISMIC

CEILING FASTENER: 1” WIDE EXPOSED T

SEALS & INSULATION + ACOUSTIC SEALS + DROP SEALS

PAINT

• 7190 – PLATINUM SOLID
• 4799 – PLATINUM METALLIC

VENEER SKINS

• 3062 – GRAPHITE WALNUT (VERTICAL & HORIZONTAL)

STEEL SKINS

• 4858 – SEAGULL
• 7241 – ARCTIC WHITE
• 4799 – PLATINUM METALLIC
• 4743 – MINERAL METALLIC

FABRIC SKINS

• P520 – TINSEL DEPTH

GLASS

• DOUBLE GLAZED (¼” + ¼”) OR (6MM + 6MM)
• SEVER ROOM FRONT ELEVATION
  • SIDE A: 6542 – SATIN
  • SIDE C: 6500 – CLEAR GLASS
• SEVER ROOM RIGHT SIDE ELEVATION
  • SIDE A: 6542 – SATIN
  • SIDE C: 6542 – SATIN
• EVERYWHERE ELSE
  • SIDE A: 6500 – CLEAR GLASS
  • SIDE C: 6500 – CLEAR GLASS
• CASPER FILM (TRANSPARENT BUT OBSTRUCTS DIGITAL SCREENS FROM THE EXTERIOR)
